Spatial Tile Serving with PostgreSQL Functions

Paul Ramsey
PostgreSQL PostGIS crunchy spatial

Crunchy Spatial logo 2In my previous posting on tile serving, I demonstrated how pg_tileserv can publish spatial tables as dynamic vector tiles.

Dynamic tiles, available as part of Crunchy Spatial, are generated in the database, on-the-fly, in response to a tile request. This allows for two kinds of dynamism to show up in the end user applications:

  • Changes in the underlying data show up in the generated tiles.
  • Changes in the tile request can show up in the generated tiles.

The first kind of dynamism is easy to exercise: connect to your database and edit your data, and the tiles will reflect the changes.

The second kind of dynamism requires a way to receive custom request parameters and use them in the tile generating query.

So each dynamic tile set requires a name, and a set of input parameters, and SQL that uses those parameters. Fortunately, PostgreSQL already has a mechanism for defining such thing: custom user functions!

Simple Filter Function

For example, here is a function that allows the end user to filter the "ne_50m_admin_0_countries" table we used in the previous example of tile serving.

-- The function requires z/y/x tile address parameters
-- and then whatever other user parameters you need.
-- Be sure to name them, and provide a default
-- value!
-- This function filters out the countries table to
-- only return those countries that start with the
-- user-provided prefix characters.
CREATE OR REPLACE
FUNCTION public.countries_name(
            z integer, x integer, y integer,
            name_prefix text default 'B')
RETURNS bytea
AS $$
   -- Convert tile coordinates to a bounding box
   WITH
   bounds AS (
   SELECT ST_TileEnvelope(z, x, y) AS geom
),
   -- Convert raw geometry into MVT geometry
   -- Pull just the name in addition to the geometry
   -- Apply the name_prefix parameter to the WHERE clause
   mvtgeom AS (
      SELECT ST_AsMVTGeom(ST_Transform(t.geom, 3857), bounds.geom) AS geom,
        t.name
      FROM ne_50m_admin_0_countries t, bounds
      WHERE ST_Intersects(t.geom, ST_Transform(bounds.geom, 4326))
      AND upper(t.name) LIKE (upper(name_prefix) || '%')
    )
    -- Serialize the result set into an MVT object
    SELECT ST_AsMVT(mvtgeom, 'public.countries_name') FROM mvtgeom;
$$
LANGUAGE 'sql'
STABLE
PARALLEL SAFE;

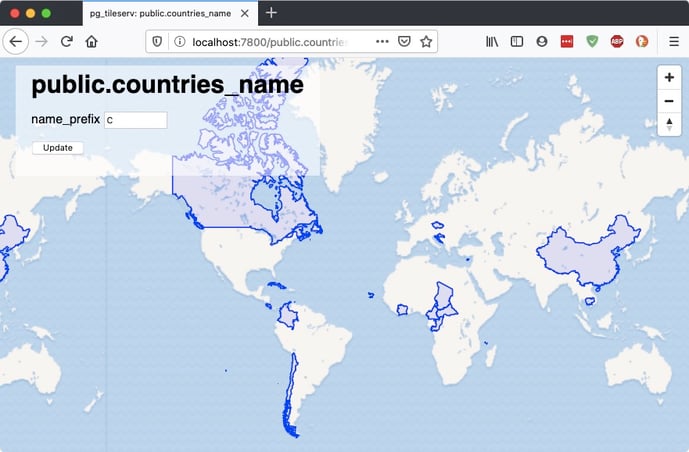

Add this function to your database and you can see it in the service browser, change the input parameter, and see the output tiles change in response.



countries_function

Geometry Generating Function

This example takes in user input, in the form of a map click, and generates outputs using that click to drive the query.

Start by downloading the "fire hydrant data" as a shape file from the City of Vancouver open data site.

Load the data into your PostgreSQL/PostGIS database with shp2pgsql:

shp2pgsql -s 26910 -D -I water-hydrants.shp hydrants | psql postgisftw

Now you have a hydrants table, and you can build geometries against that table.

Now we need a function that takes in a click, and a count (N) of hydrants to process, it will

  • Find the nearest N hydrants to the click point,
  • Build a voronoi diagram around those hydrants,
  • Clip the diagram to the convex full of the N hydrants, and
  • Return the result as a vector tile.

The function signature looks like this:

CREATE OR REPLACE
FUNCTION public.hydrants_voronoi(
            z integer, x integer, y integer,
            lon float8 default -123.129,
            lat float8 default 49.253,
            count bigint default 0)
RETURNS bytea
...

The full function definition is available here:

Load the function into your database. Refresh the server catalog by hitting the root metadata or HTML URL (http://localhost:7800/index.html). The function signature provides a definition that is exposed using JSON metadata.


{
   "minzoom" : 0,
   "maxzoom" : 22,
   "id" : "public.hydrants_voronoi",
   "name" : "hydrants_voronoi",
   "schema" : "public",
   "arguments" : [
      {
         "type" : "double precision",
         "name" : "lon",
         "default" : "-123.129"
      },
      {
         "default" : "49.253",
         "type" : "double precision",
         "name" : "lat"
      },
      {
         "name" : "count",
         "type" : "bigint",
         "default" : "0"
      }
    ],
    "tileurl" : "http://localhost:7800/public.hydrants_voronoi/{z}/{x}/{y}.pbf"
}

Web User Interface

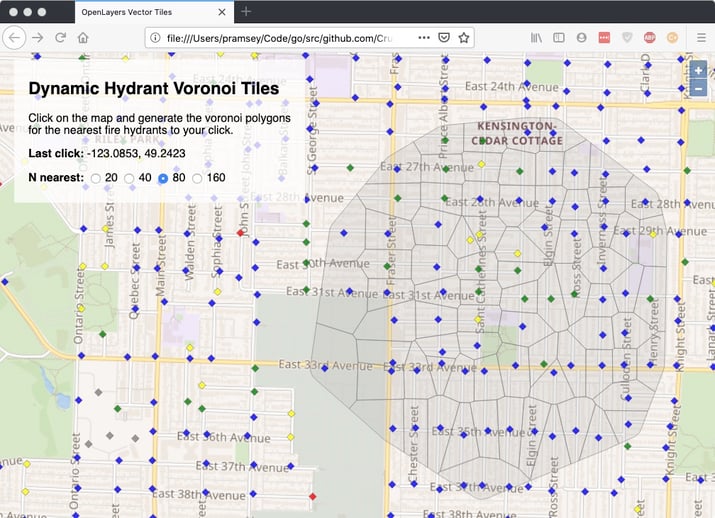

The web user interface for this example uses the OpenLayers Javascript web map library. The full HTML page is available here:



hydrants_voronoi


Some items of note in the example.


var voronoiFunction = "public.hydrants_voronoi";
function voronoiUrl(x, y, count) {
   var url = vectorServer + voronoiFunction + "/{z}/{x}/{y}.pbf"
   if (count < 1) { return url; }
   var data = "?lon="
            + x + "&lat="
            + y + "&count=" + count;
   return url + encodeURI(data);
}

The URL for the voronoi vector layer includes client-side controlled values for the click coordinate (lon/lat) and for the number of voronoi polygons to be returned (count).



// Dynamic style for hydrant points.
// Depending on the value of the 'color' property returned
// by the server, the points are assigned a different color.
// Depending on the current zoom value of the map, the
// point makers are given a different size.
// To avoid performance issues of repeatedly generating
// the same style, combinations of zoom/color are cached
// in a dictionary. var hydrantStyleCache = {};
var hydrantStyle = function(f) {
var alpha = 0.8;
  var zoom = map.getView().getZoom(); var
  clr = f.get("color"); clr = (clr && clr.length ? clr.toLowerCase() : "grey");
  var k = zoom + clr;
  var s = hydrantStyleCache[k];
  if (!s) {
   s = new ol.style.Style({
       image: new ol.style.RegularShape({
          fill: new ol.style.Fill({color: setAlpha(clr, alpha)}),
          stroke: new ol.style.Stroke({color: setAlpha("grey", alpha), width: 1}),
          points: 4,
          radius: 2 + (zoom < 12 ? 0 : (zoom - 12)),
          angle: 0
        })
      });
    hydrantStyleCache[k] = s;
  }
  return s;
}

The style for the hydrants layer dynamically reads the color values from the feature properties, and resizes the markers based on the zoom level.




// ----------------------------------------------------------------------
// Mouse hover action for all vector features on the map
// ----------------------------------------------------------------------
var info = document.getElementById('info');
map.on('pointermove', function showInfo(event) {
  var features = map.getFeaturesAtPixel(event.pixel);
  if (features.length == 0) {
    infotext.innerHTML = '';
    info.style.opacity = 0;
    return;
  }
  var properties = features[0].getProperties();
  infotext.innerHTML = props2html(properties);
  info.style.opacity = 1;
});

// Convert properties to HTML table
function props2html(props) {
  var html = "<table>";
  for (var item in props) {
    html += "<tr>";
    html += "<th>" + item + "</th>";
    html += "<td>" + props[item] + "</td>";
    html += "</tr>";
  }
  html += "</table>";
  return html;
}

A pointer move action tracks when the cursor is over a vector layer feature, and returns the properties for the first feature found, to be put into a live display. This makes exploring the features of the map more dynamic than clicking on features, and is an example of the kind of client-side features that vector tiles make possible.
